Patch Panel

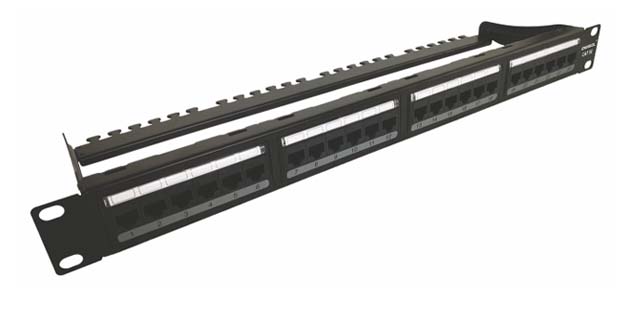

Cat6A, Cat6, Cat5e UTP, 24 Port, 90°

90 Degree (Top Entry) Punch Down Design
Built in Rear Cable Management .
6x4 Module Specially Designed Jack Configuration
1U Patch Panel to Mount in any Standard Rack

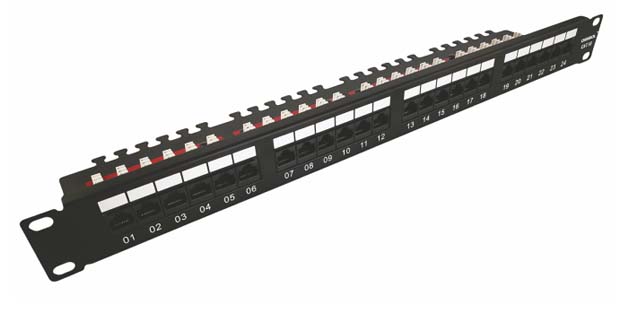

Cat6A, Cat6, Cat5e UTP, 24 Port, 180°

180 Degree Punch Down Design
6x4 Module Specially Designed Jack Configuration
1U Patch Panel to Mount in any Standard Rack

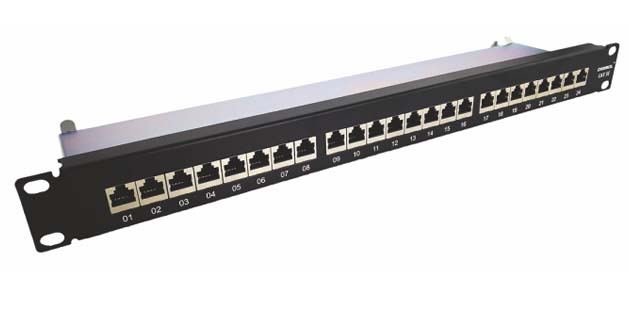

Cat6A, Cat6, Cat5e FTP, 24 Port, 90°

90 Degree (Top Entry) Punch Down Design
Removable Module Design
8x3 Module Specially Designed Jack Configuration
1U Patch Panel to Mount in any Standard Rack
