TELECOM FIBRE ACCESSORIES

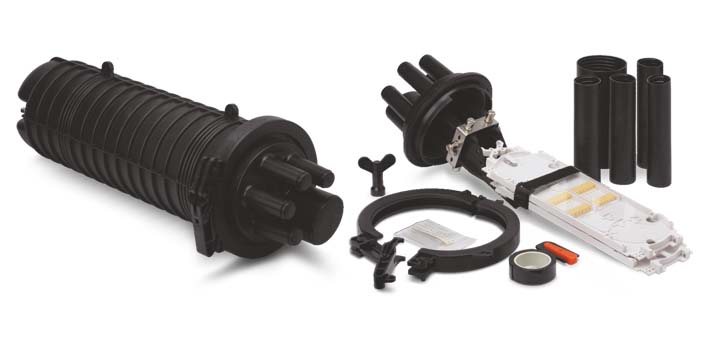

JOINT CLOSURE

Ipsum

Features

Mechanical sealing type using Silicon sealant and high pressure grease paste.
Different types of gaskets for cable diameters from 3 mm to 20 mm
Can be used with fusion and mechanical splicing on PLC splitters
IP 68 rated
Aerial, Manhole, Wall mount, Pole mount and Direct buried application
The detachable basis allows the closure to be used for mid-span applications
