FIBRE OPTICS CABLES > MICROMODULE > MULTI-TUBE

6F-48F Double Sheath Fan Out With Glass Yarn
Armoured Dielectric Optical Fibre Cable

Applications

  • These cables are specifically designed for indoor/outdoor applications.
  • Mainly used in intra-building backbones.
  • Routing between telecommunications rooms and as a riser cable in Multi-Storey buildings.
Ipsum

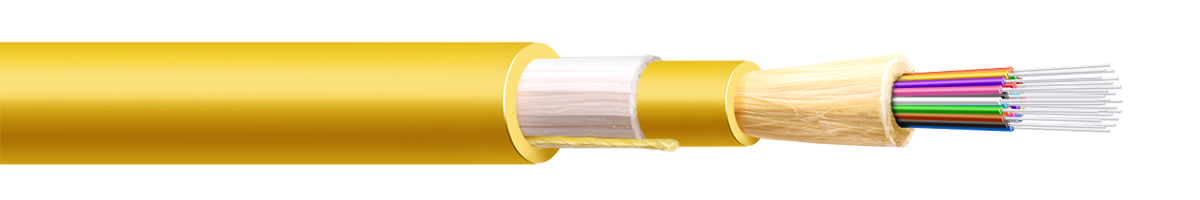

Typical Cross section of 24 Fibre

Cable Construction Details

  • TLSZH Tight Buffer.
  • High Modulus, Aramid yarn as strength member below inner sheath.
  • LSZH Inner sheath, black.
  • Peripheral Strength Member as Glass Yarn below outer sheath.
  • LSZH Outer sheath, black.

Technical Characteristics

FIBRE COUNT TIGHT BUFFER DIAMETER (μm)Nominal DIAMETER (mm) Nominal WEIGHT (Kg./Km) Nominal TENSILE STRENGTH (N) BENDING RADIUS (mm) TEMPERATURE RANGE
(IEC 60794-1-2-F1)
Installation Operation Installation Operation Installation Operation
6 900 9.2 94 2000 800 10D 15D -10°C to +60°C -20°C to +70°C
12 900 10.4 120 3000 1000 10D 15D -10°C to +60°C -20°C to +70°C
24 900 12.5 165 3000 1000 10D 15D -10°C to +60°C -20°C to +70°C
48 900 14.8 225 3000 1000 10D 15D -10°C to +60°C -20°C to +70°C

Fiber & Micro Module Colour Coding

Blue Orange Green Brown Grey White Red Black Yellow Violet Pink Aqua
*For Fibre Count 12F We provide the above colour code.
*For Higher Fibre count we provide contrast dot marking of above colour code

Special Features

  • 900 Microns Tight buffered fibres support fast field installations.
  • Easy jacket removal using standard tools.
  • Reduce installation time and costs.
  • Flexible and Fire retardant Inner & outer sheath with aramid yarns and Glass Yarn as tensile elements helps in easy installation in space constrained areas.
  • LSZH sheath makes cable suitable for higher fire safetyrequirement.
  • Small cable diameter & lightweight.
  • Requires no grounding or bonding due to all‑dielectric construction.

Drum Length

  • 2000/ 4000meters ± 5%

Mechanical Characteristics

Kink Resistance (mm) [IEC 60794-1-2-E10] 10 x D, D = Cable Diameter
Impact Resistance (Nm) [IEC 60794-1-2-E4] 1500 Impacts
Crush Resistance (N) [IEC 60794-1-2-E3] 1000 N [100 X 100 mm] for 60 sec
Water Penetration [IEC 60794-1-2-F5 B] 1 Meter Water Head, 3 Meters Cable Sample, 24 Hours [on Inner Sheath]
Flame test [IEC 60332-1-2] Complied
