FIBRE OPTIC CABLES > SPECIALITY

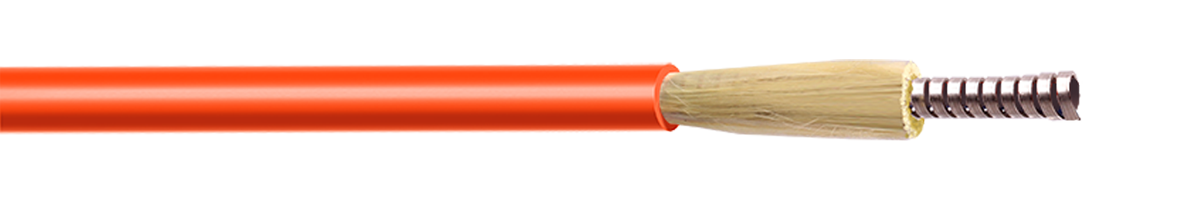

Single sheath Spiral Furcation Tube Cable

Application

  • To protect the bare or tight buffered optical fibers and to allow them to be terminated with connectors.
Ipsum

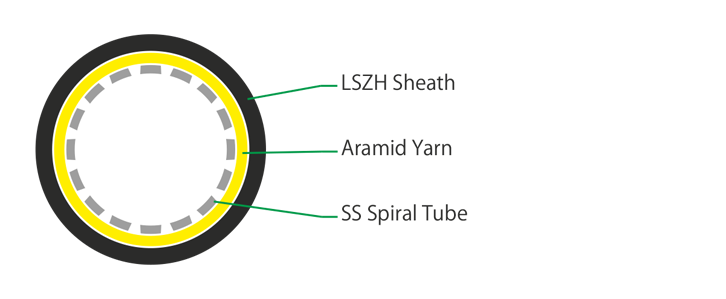

Typical Cross section

Cable Construction Details

  • Stainless Steel Spiral tube.
  • Aramid Yarn.
  • LSZH Sheath, Black Colour.

Technical Characteristics

FIBRE COUNT WEIGHT (Kg./Km) Nominal TENSILE STRENGTH (N) BENDING RADIUS (mm) TEMPERATURE RANGE
(IEC 60794-1-2-F1)
Installation Operation Installation Operation Installation Operation
4.8 30 450 300 15D 20D -20°C to +70°C -20°C to +70°C
2.75 12 250 170 15D 20D -20°C to +70°C -20°C to +70°C

Special Features

  • Mechanical Protection.
  • Flexibility.
  • Rodent and Pest Protection.
  • Environmental Protection.

Drum Length

  • 2000/ 4000meters ± 5%

Mechanical Characteristics

Kink Resistance (mm) [IEC 60794-1-2-E10] 15 x D, D = Cable Diameter
Impact Resistance (Nm) [IEC 60794-1-2-E4] Height 0.5 meters,
Weight = 0.5 Kg, 3 Nos
Crush Resistance (N) [IEC 60794-1-2-E3] 500 N/ 10 cm
