FIBRE OPTIC CABLES > SPECIALITY

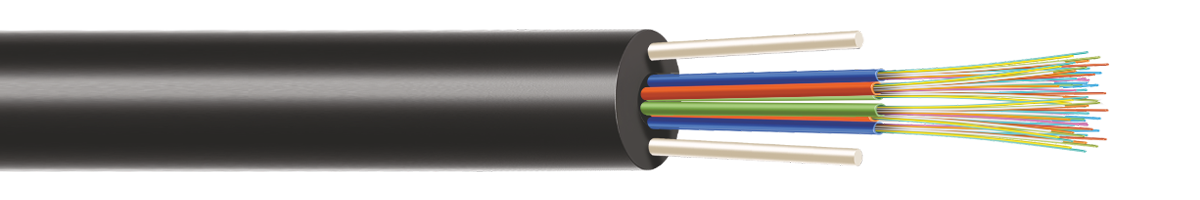

12F - 144F Single Sheath Retractable
Optical Fibre Cable With Ridge

Applications

  • These cables can be used for indoor installation
  • Window cuts into the sheath allow easy selection and extraction of single fibre unit for re‑routing purposes without the need to dispose of excess cable
  • Modules may be further blown, pushed or pulled (using pulling cords) inside micro‑ducts
Ipsum

Typical Cross section of 144 Fibre

Cable Construction Details

  • The micro‑module unit consist of 12 fibres, an easily strippable and flexible
  • Non‑metallic and anti‑buckling element FRP rod (2 nos) used as Embedded Strength Member
  • LSZH Outer sheath

Technical Characteristics

FIBRE COUNT DIAMETER (mm) Nominal WEIGHT (Kg./Km) Nominal TENSILE STRENGTH (N) BENDING RADIUS (mm) TEMPERATURE RANGE
(IEC 60794-1-2-F1)
Installation Operation Installation Operation Installation Operation
12F ≤ 6.0 ≤ 26 500 200 15D 20D -5°C to +60°C -20°C to +60°C
24F ≤ 7.0 ≤ 35 500 200 15D 20D -5°C to +60°C -20°C to +60°C
36F ≤ 8.0 ≤ 46 500 200 15D 20D -5°C to +60°C -20°C to +60°C
48F ≤ 9.5 ≤ 65 500 200 15D 20D -5°C to +60°C -20°C to +60°C
72F ≤ 10.0 ≤ 72 500 200 15D 20D -5°C to +60°C -20°C to +60°C
96F ≤ 10.5 ≤ 80 500 200 15D 20D -5°C to +60°C -20°C to +60°C
144F ≤ 12.0 ≤ 98 500 200 15D 20D -5°C to +60°C -20°C to +60°C

Fibre Colour Coding

Blue Orange Green Brown Grey White Red Black Yellow Violet Pink Aqua

Micro Module Colour Coding

Blue Orange Green Brown Grey White Red Black Yellow Violet Pink Aqua
*For Fibre Count 12F We provide the above colour code

Special Features

  • Low‑bend‑sensitivity fibre provides high bandwidth and excellent communication transmission property
  • Two parallel strength members ensure good performance of crush resistance to protect the fibre
  • Simple structure, light weight and high practicability
  • All dielectric construction.

Drum Length

  • 2000/ 4000meters ± 5%

Mechanical Characteristics

Impact Resistance (Nm) [IEC 60794-1-2-E4] 3 Nm, 3 Impacts at different places 500 mm apart
Repeated Bending [IEC 60794-1-2-E6] 25 Cycle, r = 20 X D, 20 N Load,
D = Cable Diameter
Crush Resistance (N) [IEC 60794-1-2-E3] 1000 N [100 X 100 mm] for 30 sec
Torsion Resistance [IEC 60794-1-2-E7] 10 Cycle [± 180°] 20 N Weight,
Length under Test꞉ 1 meters
Micro Module Strip‑ability 1 meter in 1 minutes
