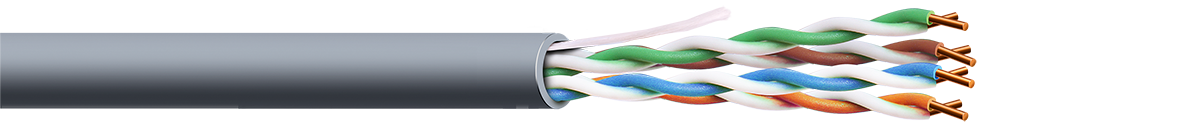

4 PAIR CAT 5E 24AWG UTP CABLE

Application

These structure cable suitable for Ethernet Applications and compatible with all known connection Systems, Ideal for high performance workstation applications including voice/data systems, Digital video, Broadband and Voice over internet protocol etc.

Ipsum

Typical Cross section

Electrical Characteristics:

Conductor Resistance Max. 9.38 Ω/km
Conductor Resistance Unbalance Max 2 %
Mutual Capacitance Max. 5.6 nF/100m
Capacitance Earth Unbalance Max 160 pF/100m
Propagation Delay @ 1, 10, 100 MHz Max. 570, 545, 538 ns/100 m
Propagation DeLay Skew 1 – 100MHz Max. 45 ns/100 m
Characteristic Impedance (1-100MHz) 100 ± 15Ω

Description:

Conductor : 24 AWG Solid Bare Copper conductor
Insulation : High Density Polyethylene, Diameter 0.88 ± 0.05mm)
Pairs : Two Insulated conductors Twisted together to form pair
Twisting : 4 pairs laid together
Sheath : PVC/LSZH
Colour : Grey or per request
Cable Diameter : 5.0 ± 0.5 mm

Features:

  • Generally complied requirements of ISO 11801 Class D or TIA/EIA 568 C.2 Category 5e
  • Cable Characterized up to 100 MHz,
  • Packaged in Cardboard Box.
  • Flammability; IEC60332-1-2
  • Suitable for Indoor Installation.

Technical Details

Freq (MHZ) Attenuation (dB/100m) NEXT (dB) PSNEXT (dB) ACRF (ELFEXT)(dB) PSACRF [PSELFEXT] (dB) Return Loss
(dB)
Max. Min. Min. Min. Min. Min.
1.0 17.0 2.2 60.0 57.0 57.4 54.4
4.0 17.0 4.5 53.5 50.5 45.4 42.4
8.0 17.0 6.3 48.6 45.6 39.3 36.3
10.0 17.0 7.1 47.0 44.0 37.4 34.4
16.0 17.0 9.1 43.6 40.6 33.3 30.3
20.0 17.0 10.2 42.0 39.0 31.4 28.4
25.0 16.0 11.4 40.3 37.3 29.4 26.4
31.25 15.1 12.9 38.7 35.7 27.5 24.5
62.5 12.1 18.6 33.6 30.6 21.5 18.5
100 10.0 24.0 30.1 27.1 17.4 14.4

Note:

Supplied cable Guaranteed to Pass Fluke channel Test

Colour Code:

Pair 1 : White/Blue Strip -Blue
Pair 2 : White/Orange Strip -Orange
Pair 3 : White/Green Strip-Green
Pair 4 : White/Brown Strip-Brown

Standard Length & Packing:

305m Box Dimension (LxBxH) : 14X8X14 Inch

Mechanical Properties:

Bending radius : 4 x overall diameter (min.)
Breaking Strength : 400 N (max.)

Thermal Characteristics:

Temperature Range : -10°C up to + 60°C
