FIBRE OPTIC CABLES > SPECIALITY

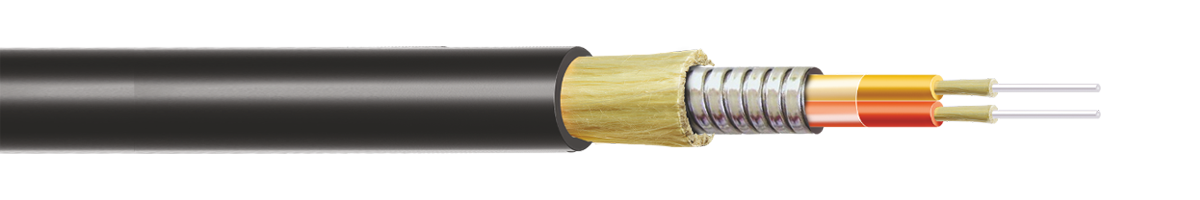

1F - 6F Double Sheath Spiral Armoured With
Wire Braiding Optical Fibre Cable

Applications

  • To provide high‑speed, low‑latency and reliable connectivity between the cellular base stations and the remote radio heads (RRHs) or antennas.
  • Wireless telecommunications networks.
Ipsum

Typical Cross section of 6 Fibre

Cable Construction Details

  • Tight Coating [Tight Buffer].
  • Peripheral strength member.
  • Inner Sheath LSZH.
  • Steel Wire Spiral Armouring.
  • Steel Wire Braiding.
  • LSZH Outer sheath.

Technical Characteristics

FIBRE COUNT TIGHT BUFFER DIAMETER (μm)Nominal DIAMETER (mm) Nominal WEIGHT (Kg./Km) Nominal TENSILE STRENGTH (N) BENDING RADIUS (mm) TEMPERATURE RANGE
(IEC 60794-1-2-F1)
Installation Operation Installation Operation Installation Operation
1F up to 6F 900 6.3 75 500 300 10D 20D -20°C to +70°C -20°C to +70°C

Tight Buffer Colour Coding

Natural or as per Customer Require EIA 359‑A, IEC Publication 304(4) TIA 598D, IEC TR 63194 Latest Issue

Fibre Colour Coding

Blue Orange Green Brown Grey White

Special Features

  • Lower Latency.
  • Longer Distance Reach.
  • Flexible.
  • Light Weight.
  • Mechanical Protection.
  • Rodent and Pest Protection.

Drum Length

  • 2000/ 4000meters ± 5%

Mechanical Characteristics

Impact Resistance (mm) [IEC 60794-1-2-E4] Height 0.5 meters, Weight = 1 Kg,
3 nos at different places
Crush Resistance (N) [IEC 60794-1-2-E3] 3000 N [100 X 100 mm] for 5 minutes,
3 times at 150 mm apart
Repeated Bending [IEC 60794-1-2-E6] 30 Cycle, r = 20 X D, 1 Kg Load,
D = Cable Diameter
Flame test [IEC 60332-3-24] Complied
