FIBRE OPTIC CABLES > AERIAL > ADSS > MULTI-TUBE

12F -288F Single Sheath Multi Tube All

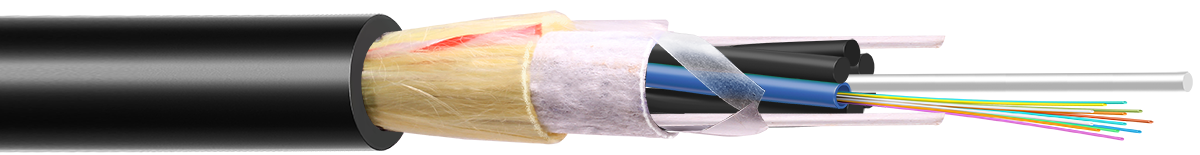

Di-electric Self Supporting Optical Fibre Cable

Application

  • Suitable for self supporting aerial installation.
Ipsum

Typical Cross section of 96 Fibres

Cable Construction Details

  • Up to 288 enhance low water peak single mode fibres in full compliance with ITU‑T‑G.652.D (also available with G655 / G656 / G657 SM Fibre and OM1 / OM2 / OM3 & OM4 MM Fibre).
  • 6/8/12 fibre per tube combinations are available in 6/8/12/18/24 element construction.
  • Non metallic anti‑buckling FRP rod as Central Strength Member.
  • Loose buffer tubes fully filled with Thixotropic Jelly & Fibres.
  • Loose buffer tubes S‑Z Stranded (Water Swellable Yarn over CSM).
  • Cable core is Dry & wrapped with water swellable tape.
  • Aramid yarn used as peripheral strength member.
  • UV Stabilized PE outer sheath, Black (also available with HFFR / FR PVC).
  • Rip cord to open the sheath.

Technical Characteristics

FIBRE COUNT DIAMETER (mm) Nominal WEIGHT (Kg./Km) Nominal TENSILE STRENGTH (N) BENDING RADIUS (mm) TEMPERATURE RANGE
(IEC 60794-1-2-F1)
Installation Operation Installation Operation Installation Operation
12 10.5 80 3500 2000 15D 20D -10°C to +50°C -40°C to +70°C
24 10.5 80 3500 2000 15D 20D -10°C to +50°C -40°C to +70°C
36 10.5 80 3500 2000 15D 20D -10°C to +50°C -40°C to +70°C
48 10.5 80 3500 2000 15D 20D -10°C to +50°C -40°C to +70°C
72 10.5 80 3500 2000 15D 20D -10°C to +50°C -40°C to +70°C
96 11.8 110 6500 3500 15D 20D -10°C to +50°C -40°C to +70°C
144 14.5 160 6500 3500 15D 20D -10°C to +50°C -40°C to +70°C
192 15.0 160 5000 2500 15D 20D -10°C to +50°C -40°C to +70°C
216 15.0 160 5000 2500 15D 20D -10°C to +50°C -40°C to +70°C
288 17.0 205 6500 3500 15D 20D -10°C to +50°C -40°C to +70°C

Colour Coding ‑ Fibre & Tube

Blue Orange Green Brown Grey White Red Black Yellow Violet Pink Aqua
*More than 12 Tube we provide black stripe above the coloured tube

Special Features

  • Single & Double layer S‑Z stranded construction.
  • Offers exceptional strength and corrosion resistance for aerial application.
  • Flexible buffer tubes provide easy fibre routing inside closure.

Drum Length

  • 2000/ 4000 meters ± 5%

Mechanical Characteristics

Cable Bending Radius (mm)
[IEC 60794-1-21-E11 A & B] 		20 X D, D= Cable diameter
Impact Resistance (Nm)
[IEC 60794-1-21-E4] 		5 Nm, 3 Impacts
Crush Resistance (N)
[IEC 60794-1-21-E3]		 2000 N (100 X 100 mm)
Torsion Resistance
[IEC 60794-1-21-E7]		 10 Cycle (± 180°
Water Penetration
[IEC 60794‑1‑22‑F5 B/C] 		1 Meter Water Head, 3 Meters
Cable Sample, 24 Hours
