FIBRE OPTIC CABLES > UNDERGROUND DUCT > DIELECTRIC > MULTITUBE

6F - 144F Single Sheath Multi Tube
Micro Module 4FRP Design Duct / ADSS Optical Fibre Cable

Applications

  • The universal design is suited for use in most network arenas, including backbone, access and distribution.
  • Quick fibre preparation ready for installation.
  • Installation within ducts/overhead using blown on pulling techniques.
Ipsum

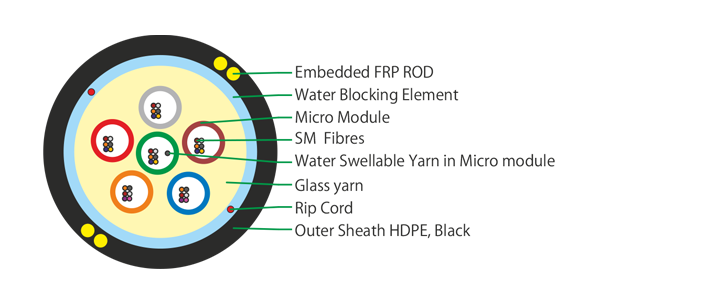

Typical Cross section of 36 Fibres

Cable Construction Details

  • The micro‑module unit consist of 6 fibres along with WS
    Yarn an easily strippable and flexible.
  • Glass yarn as peripheral strength member.
  • Non-metallic and anti-buckling element FRP rod (4 nos)
    used as Embedded Strength Member.
  • Water Blocking Element wrapped over Aramid Yarn.
  • HDPE Outer sheath, Black Colour, UV Stabilized.

Technical Characteristics

FIBRE COUNT DIAMETER (mm) Nominal WEIGHT (Kg./Km) Nominal TENSILE STRENGTH (N) BENDING RADIUS (mm) TEMPERATURE RANGE
(IEC 60794-1-2-F1)
Installation Operation Installation Operation Installation Operation
6F 6.0 32 1800 800 15D 20D -5°C to +40°C -30°C to +60°C
12F 7.5 45 2400  1000 15D 20D -5°C to +40°C -30°C to +60°C
24F 7.5 45 2400 1000 15D 20D -5°C to +40°C -30°C to +60°C
36F 8.5 60 2400 1000 15D 20D -5°C to +40°C -30°C to +60°C
48F 8.5 60 2800 1200 15D 20D -5°C to +40°C -30°C to +60°C
72F 10.5 90 4000 1800 15D 20D -5°C to +40°C -30°C to +60°C
96F 11.5 105 4500 2100 15D 20D -5°C to +40°C -30°C to +60°C
144F 13.0 130 5400 2500 15D 20D -5°C to +40°C -30°C to +60°C

Fibre & Micro Module Colour Coding

Fibre Colour Coding
Blue Orange Green Brown Grey White
Micro Module Colour Coding
Blue Orange Green Brown Grey White Red Black Yellow Violet Pink Aqua
*For Fibre Count 12F We provide the above colour code.
*For Higher Fibre count we provide contrast dot marking of above colour code.

Special Features

  • Reduced diameter micro modules.
  • Flexible Micro modules are easily removed without the need for tools.
  • Reduce installation time and costs.
  • Small cable diameter & lightweight.
  • Requires no grounding or bonding due to all‑dielectric construction.

Drum Length

  • 2000/ 4000 meters ± 5%

Mechanical Characteristics

Kink Resistance (mm)
[IEC 60794‑1‑2‑E10] 		15 x D, D = Cable Diameter
Impact Resistance (Nm)
[IEC 60794‑1‑2‑E4] 		5 Nm, 3 Nos at 500mm apart
Crush Resistance (N)
[IEC 60794‑1‑2‑E3] 		2000 N [100 X 100 mm] for 60 sec
Torsion Resistance
[IEC 60794‑1‑2‑E7] 		5 Cycle [± 180°] 40 N Weight,
Length under Test‑2 meters
Repeated Bending
[IEC 60794‑1‑2‑E6] 		30 Cycle, r = 20 X D, 5 Kg Load,
D = Cable Diameter
Water Penetration
[IEC 60794‑1‑22‑F5 B/C] 		1 Meter Water Head, 3 Meters
Cable Sample, 24 Hours
Micro Module Strip‑ability Micro Module Easy Strippable, 1 meter in 1 minutes
