FIBRE OPTIC CABLES > SPECIALITY

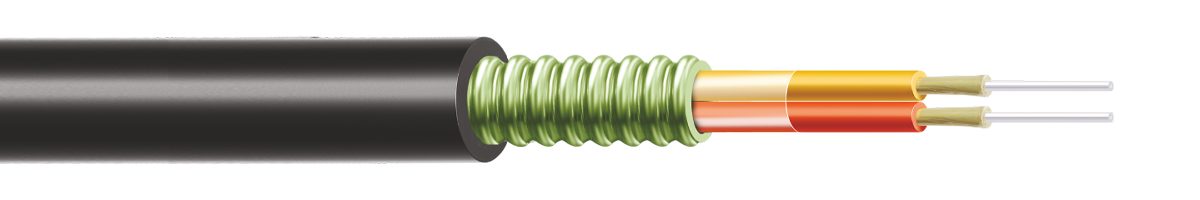

1F to 6F Double Sheath FTA (Fibre To Antenna)
Optical Fibre Cable

Applications

  • To provide high‑speed, low‑latency and reliable connectivity between the cellular base stations and the remote radio heads (RRHs) or antennas.
  • Wireless telecommunications networks.
Ipsum

Typical Cross section of 6 Fibre

Cable Construction Details

  • Tight Coating [Tight Buffer].
  • Peripheral Strength member.
  • Inner Sheath LSZH.
  • Wrapping Tape.
  • Corrugated ECCS tape.
  • HDPE Outer sheath.

Technical Characteristics

FIBRE COUNT TIGHT BUFFER DIAMETER (μm)Nominal DIAMETER (mm) Nominal WEIGHT (Kg./Km) Nominal TENSILE STRENGTH (N) BENDING RADIUS (mm) TEMPERATURE RANGE
(IEC 60794-1-2-F1)
Installation Operation Installation Operation Installation Operation
2 900 8.0 60 500 300 10D 20D -20°C to +70°C -20°C to +70°C
4 900 8.2 62 500 300 10D 20D -20°C to +70°C -20°C to +70°C
6 900 9.5 82 500 300 10D 20D -20°C to +70°C -20°C to +70°C

Fiber Colour Coding

Natural or as per Customer Require EIA 359‑A, IEC Publication 304(4) TIA 598D, IEC TR 63194 Latest Issue

Tight Buffer Colour Coding

Blue Orange Green Brown Grey White

Special Features

  • Enhanced Data Rates.
  • Lower Latency.
  • Increased Capacity.
  • Longer Distance Reach.
  • Mechanical Protection.
  • Rodent Resistant.

Drum Length

  • 2000/ 4000meters ± 5%

Mechanical Characteristics

Impact Resistance (Nm) [IEC 60794-1-2-E4] 1 J, 3 Impacts
Crush Resistance (N) [IEC 60794-1-2-E3] 1500 N [100 X 100 mm] for 5 minutes,
3 times at 150 mm apart
Torsion Resistance [IEC 60794-1-2-E7] 10 Cycle [± 180°] 1 Kg Weight,
Length under Test‑2 meters
Repeated Bending [IEC 60794-1-2-E6] 30 Cycle, r = 20 X D, 1 Kg Load,
D = Cable Diameter
