FIBRE OPTIC CABLES > AERIAL > ADSS > ULTRA‐LIGHT WEIGHT

2F-96F Single Sheath Ultra Light Weight
‑ Micro Module Optical Fibre Cable

Applications

  • This Cable is suitable for FTTH Roll out and a range of light weight drop type design / construction cables for installation in the Fibre Network in Overhead and Underground environments.
  • This cable meets the breaking load requirement less than 2000 N in the interests of safety for overhead applications. It benefits form unique safety features of predictable breaking load which is essential in the event of vehicle strike, to protect equipment and minimize the risk of loss of tangible assets that could potentially harm personnel, property or equipment and will be a fully safe aerial installation solution. Span length of 68 meters maximum.
Single Sheath Ultra Light Weight Micro Module Optical Fibre Cable

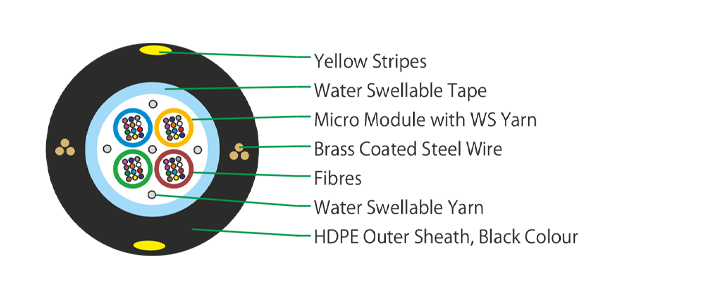

Typical Cross section of 48 Fibres

Cable Construction Details

  • The Dry Micro Module consist of 12 fibres an easily strippable and flexible. WS Yarn along with Fibres.
  • Dry type core filled with Water Swellable Material.
  • Fillers/Dummy for maintaining circularity of cable core.
  • Cable Core Wrapped with WS Tape.
  • Brass Coated Steel Wire as Embedded strength members protect from against buckling.
  • Outer Sheath of HDPE, UV Stabilized, Black Colour

Technical Characteristics

FIBRE COUNT DIAMETER (mm) Nominal WEIGHT (Kg./Km) Nominal TENSILE STRENGTH (N) BENDING RADIUS (mm) TEMPERATURE RANGE
(IEC 60794-1-2-F1)
Installation Operation Installation Operation Installation Operation
2F 7.0 36 950 500 10D 20D -10°C to +60°C -30°C to +85°C
4F 7.0 36 950 500 10D 20D -10°C to +60°C -30°C to +85°C
6F 7.0 36 950 500 10D 20D -10°C to +60°C -30°C to +85°C
8F 7.0 36 950 500 10D 20D -10°C to +60°C -30°C to +85°C
12F 7.0 36 950 500 10D 20D -10°C to +60°C -30°C to +85°C
24F 7.0 36 950 500 10D 20D -10°C to +60°C -30°C to +85°C
48F 7.0 36 950 500 10D 20D -10°C to +60°C -30°C to +85°C
72F 7.0 36 950 500 10D 20D -10°C to +60°C -30°C to +85°C
96F 7.0 36 950 500 10D 20D -10°C to +60°C -30°C to +85°C

Fibre & Micro Module Colour Coding

Blue Orange Green Brown Grey White Red Black Yellow Violet Pink Aqua
*For Fibre Count 12F We provide the above colour code
*For Higher Fibre count we provide contrast dot marking of above colour code

Special Features

  • Reduced diameter Micro Module manufactured from soft and flexible elastomeric material.
  • Micro Module are kink resistant and easily removed without the need for tools.
  • Diametrically opposite embedded strength members provide excellent crush protection and Tensile performance.
  • Ultra‑compactness, easier storage and faster installation.

Drum Length

  • 2000/ 4000 meters ± 5%

Mechanical Characteristics

Kink Resistance (mm)
[IEC 60794-1-2-E10] 		10 x D, D = Cable Diameter
Impact Resistance (Nm)
[IEC 60794-1-2-E4] 		Height 0.5 meters,
Weight =1 Kg, 3 Nos
Crush Resistance (N)
[IEC 60794-1-2-E3]		 2000 N [100 X 100 mm]
for 60 sec
Torsion Resistance
[IEC 60794-1-2-E7]		 10 Cycle [± 180°] 1 Kg Weight,
Length under Test‑2 meters
Repeated Bending
[IEC 60794-1-2-E6] 		30 Cycle, r = 20 X D, 1 Kg Load,
D = Cable Diameter
Water Penetration
[IEC 60794-1-22-F5 B/C] 		1 Meter Water Head, 3
Meters Cable Sample, 24 Hours
