STRUCTURED CABLES > CAT 5E

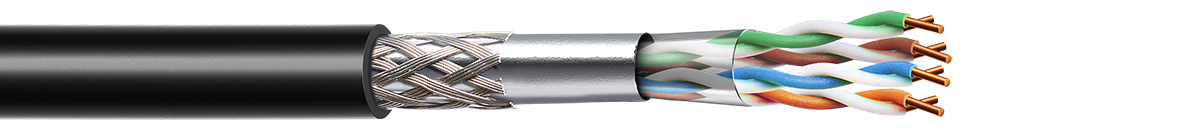

4PAIR CAT 5E 24AWG SF/UTP CABLE

Application

These structure cable suitable for Ethernet Applications and compatible with all known connection Systems, Ideal for high performance workstation applications including voice/data systems, Digital video, Broadband and Voice over internet protocol etc.

Ipsum

Typical Cross section

Electrical Characteristics:

Conductor Resistance Max. 9.38 Ω/km
Conductor Resistance Unbalance Max 5 %
Mutual Capacitance Max. 5.6 nF/100m
Capacitance Earth Unbalance Max. 330 pF/100m
Propagation Delay @ 1, 10, 100 MHz Max. 570, 545, 538 ns/100 m
Propagation DeLay Skew 1 – 100MHz Max. 45 ns/100 m
Dielectric strength 2500VDC/2s
Insulation resistance 5000 MΩ.km
NVP 62%(nom)
Characteristic Impedance (1-100MHz) 100 ± 15Ω

Description:

Conductor : 24 AWG Solid Bare Copper conductor
Insulation : Diameter 0.92± 0.05mm)
Pairs : Two Insulated conductors Twisted together to form pair
Twisting : 4 pairs laid together
Core Wrapping : Overall PET tape
Shielding: : Overall AL-PET Tape (Mylar)+Tinned copper conductor braiding.
Sheathing : Extruded PVC/LSZH Compound
Colour : Grey/black or per request
Cable Diameter : 6.5 ± 0.50 mm

Features:

  • Generally Complies to TIA/EIA 568 C.2 ,ISO/ IEC 11801 – 2nd Edition ,
  • Cable Characterized up to 100 MHz,
  • Overall Mylar tape Screen
  • Overall Tinned copper conductor braiding.
  • Flammability of Sheath IEC 60332-1-2

Technical Details

Freq (MHZ) Attenuation (dB/100m) NEXT (dB) PSNEXT (dB) ACRF (ELFEXT)(dB) PSACRF [PSELFEXT] (dB) Return Loss
(dB)
Max. Min. Min. Min. Min. Min.
1 2.3 65 62 63.3 60.3 19
4 4.2 63 60.5 51.2 48.2 19
8 5.8 58.2 55.6 45.2 42.2 19
10 6.5 56.6 54 43.3 40.3 19
16 8.2 53.2 50.6 39.2 36.2 18
20 9.2 51.6 49 37.2 34.2 17.5
25 10.2 50 47.3 35.3 32.3 17
31.25 11.5 48.4 45.7 33.4 30.4 16.5
62.5 16.4 43.4 40.6 27.3 24.3 14
100 20.9 39.9 37.1 23.3 20.3 12

Note:

Supplied cable Guaranteed to Pass Fluke channel Test

Colour Code:

Pair 1 : White/Blue Strip -Blue
Pair 2 : White/Orange Strip -Orange
Pair 3 : White/Green Strip-Green
Pair 4 : White/Brown Strip-Brown

Standard Length & Packing:

305m Box Dimension (LxBxH) : 13x6x14 Inch

Mechanical Properties:

Bending radius : 8 x overall diameter (min.)
Pulling Force : Max 115 N

Thermal Characteristics:

Operating Temperature : - 20°C to +70°C
