PVC CABLES

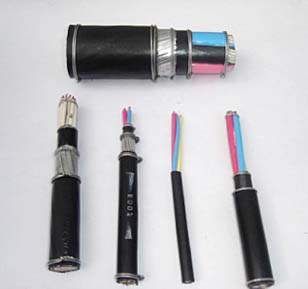

Power and Control Cable
Universal cables Ltd manufactures PVC cables up to 11 KV grade to Indian as well as international standards. Both utilities and domestic users find them suitable for power distribution, control system, utility network, railway signaling installations, switching stations, textile mills, chemical plants, and machine shops etc. Normal PVC insulated cables are suitable for an operating conductor of 700C and HR PVC insulated cables are suitable for an operating conductor temperature of 850C.
| Type of Cable | Number of cores | Cross Sectional Area (sqmm) | Specification |
|---|---|---|---|
| Power Cables | Single Core Multi Core |
4 to 1000 4 to 630 |
IS 1554 Part I Do |
| Control Cables | Multi Core | 1.5 & 2.5 | Do |
| Mining Cables | Multi Core | 16 to 630 | Do |
| Instrumentation Cables | Multi Core, Multi Pair, Multi Traid | 0.5 to 2.5 | Tailor made to customer requirements |
Cables with improved fire performance characteristics are also available. The sheath of these cables shall be specially formulated to meet the requirements of flame retardance (FR) or Flame retardance with reduced halogen evolution and Low Smoke (FRLS)
Cables of voltage grade 3.3 KV to 11 KV (E) are also available on customer requests as per IS 1554 Part-II or any other international specification.
Cables of voltage grade 3.3 KV to 11 KV (E) are also available on customer requests as per IS 1554 Part-II or any other international specification.(FR) or Flame retardance with reduced halogen evolution and Low Smoke (FRLS)
