ELASTOMERIC CABLES
Elastomeric Cables

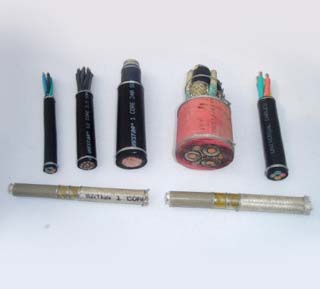

UCL elastomeric cables are manufactured to Indian and International specifications and also tailor made to customer’s own specifications from low voltage to 33 KV grade. The range of application spreads from Power, control & composite cables for trailing, ship wiring and Defense use to mining cables for land line, LHD & SDL machines, Drills, Coal cutters, Stacker-Reclaimers and earth moving equipments. Silicon rubber cables are manufactured for high temperature locations. Special power & control cables for oil rigs, traction motors, brush gear connectors, tap changers for EMU’s, AC coaches and wind energy generators. The fire survival type elastomeric cables are used for circuit integrity during fire hazards.
| Type of Cable | Voltage Grade | Cross Sectional Area (Sq.mm) | Specification |
|---|---|---|---|
| General Wiring, Control and Power distribution | 1.1 to 33 kV | 1 to 630 for LT 16-630 for HT | IS:9968(Part I and II) IEC 60502(Part I and II) |
| Railway Electrification and Coach wiring | 300V to 3000V | 0.5 to 630 | DLW-DEL/SPN/129 DLW-DEL/SPN/130 CLW/ES/C-41 RDSO/E-14/01(Part I&II) |
| High Temprature Fluro Elastomeric cables & Lead wires | 1500 V | 50 to 250 | RDSO MP.0.52.00.08 Hitachi 10W 702-362 BHEL Specn TM 88072 |
| Ship Wiring | 440V to 1000 V | 1 to 630 | DGS-211, DGS-212, IEC-60092-353, NES 526, NES-527 |
| Thin Walled Cable for coach wiring | 3 kV 3 & 4 kV |
1.5-300 1.5-150 - 3 kV 10-150 - 4 kV |
CLW/ES/C-51 RDSO-ELRS/SPEC/ELC/0019 RDSO/E-14/03 |
| Fire Survival Cables | 1.1 kV to 1.5 kV | 10-300 | IS:9968 Part I RDSO SPEC/E-14/04 |
| Mining and Land Line Cables | 1.1 kV to 11 kV | 2.5-300 | IS:14494 |
| High Temperature Silicon Cables | 1.1 KV to 11 kV | 1 to 630 | IS:9968(Part I ) BS-6007, BS-6195, DGS-211, NES-527 BHEL |
| Wind Energy Cables | 1.1kV | 10-300 | IS:9968 Part I |
| Oil Rig Cables | 1.1kV | 1.5-50 | BHEL: OR-12002 BHEL: OR-12003 BHEL : OR-12005 |
| Insulated Cadmium Catenary Cables for electric traction | 25 kV AC | 19/2.10 mm | Indian Railway Specification (ETI/OHE/75) |
| Welding Cables | – | 16-95 | IS: 9857 |
| Radiation resistant Cables | 1.1 kV to 11 kV | 1 to 630 for LT 16t to 630 for HT |
IS:9968 (Part I & II) |
| Radar Cable | 1.1 kV | 16 | Defense Specification |
