XLPE CABLES

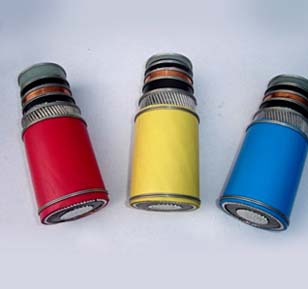

Medium Voltage Cables
Unistar Medium Voltage XLPE cables from 3.3 kV to 33 kV grade are manufactured by dry curing process to Indian as well as international specifications. These cables therefore have improved thermo mechanical and excellent electrical properties. These cables find their application in power transmission & distribution, Railways, fertilizers , Petro-chemical plants, submarine and under water power transmission.
| Number of Cores | Voltage Grade | Cross Sectional Area (sqmm) | Specification | Type/Application |
|---|---|---|---|---|
| Single Core | 3.3 KV to 11 KV(UE) | 25 to 1000 | IS 7098 part II IEC 60502 Part I & Part II |
Power transmission & distribution, Under water Transmission, Radiation resistant cables up to 11 KV for power transmission in nuclear power plants. |
| Single Core | 22 KV (E) | 35 to 1000 | IS 7098 part II IEC 60502 Part II |
|
| Single Core | 33 KV (E) | 50 to 1000 | IS 7098 part II IEC 60502 Part II |
|
| Three Core | 3.3 KV to 11 KV(UE) | 25 to 400 | IS 7098 part II IEC 60502 Part I & Part II |
|
| Three Core | 22 KV (E) | 35 to 400 | IS 7098 part II IEC 60502 Part II |
|
| Three Core | 33 KV (E) | 55 to 400 | IS 7098 part II IEC 60502 Part II |
Cables with improved fire performance characteristics are also available. The sheath of these cables shall be specially formulated to meet the requirements of flame retardance (FR) or Flame retardance with reduced halogen evolution and Low Smoke (FRLS)
