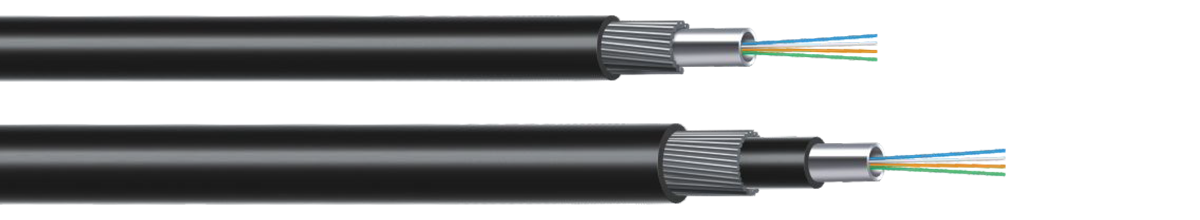

STAINLESS STEEL WIRE ARMOURED TACTICAL CABLE FOR MILITARY APPLICATION

Tactical Optical Fibre Cables

Application

  • Indoor / Outdoor—
  • Suitable for rapid deployment in extreme environmental conditions.
  • For military application
  • Temporary robust communication lines and mobile applications with Rodent protection
Ipsum

Typical Cross Section Of 4 F Air Blown Cable

Technical Characteristics

FIBRE COUNT SHEATH DIAMETER (mm) Max. WEIGHT (Kg./Km) BENDING RADIUS (mm) TEMPERATURE RANGE
(IEC 60794-1-2-F1)
Nominal Temporary Permanent Installation Operating
UPTO 6F Double Sheath 6.0 70 15D 20D -10° to +50° C -40° to +70° C
12F Double Sheath 7.0 95 15D 20D -10° to +50° C -40° to +70° C
UPTO 6F Single Sheath 6.0 45 15D 20D -10° to +50° C -40° to +70° C

Color Coding - Fibre & Tube

Blue Orange Green Brown Grey White Red Black Yellow Violet Pink Aqua

Special Features

  • —Cut resistant, Polyurethane outer jacket
  • —Flexible construction for multiple deployment
  • —Performance in wide temp range
  • —High permissible tensile strength
  • Excellent protection against rodents and termites
  • —Durable in high traffic areas
  • —Ruggedized cable and easy to use in the field
  • High impact and crush resistance

Mechanical Characteristics

Tensile Strength Permanent 900 N max.
Crush Strength 1000 N/cm
Impact Resistance 200 (Min.)
Flex Resistance 2000 Cycle (Min.)
Storage Temperature -300 0 C to +65 C
Breaking Load >3500 N
Water Pressure >500 Bar

Drum Length

  • 500/ 1000/ 2000 meters ± 5%
