BIRLA CABLE LTD.

FTTH / Indoor Cables

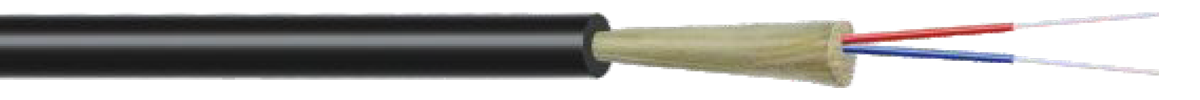

FANOUT TIGHT BUFFER UNARMOURED OPTICAL FIBRE CABLE (2-48F)

Application

  • —Rugged multi fibre cross connect
  • Intra building backbone
  • Fibre backbone to communication closets
Ipsum

Typical Cross Section of 2F

Cable Construction Details

  • —Upto 48 Fibre of Single mode fibre in full compliance with ITU-T G652D (also available with G657 SM Fibre and OM1 / OM2 / OM3 & OM4 MM Fibre)
  • —Aramid Yarns as Strength Member
  • —PA-12 / LSZH tight coating on Fibre
  • LSZH Compound for outer sheathing
FIBRE COUNT DIAMETER (mm) Nominal WEIGHT (Kg./Km) Nominal TENSILE STRENGTH (N) BENDING RADIUS (mm) TEMPERATURE RANGE
(IEC 60794-1-2-F1)
Installation Operating Temporary Permanent Installation Operating
UPTO 6F 5.0 25 500 300 15D 20D -10° to +70° C -40° to +70° C
8/12F 6.8 32 500 300 15D 20D -10° to +70° C -40° to +70° C
36/48F 16.5 215 2000 1000 15D 20D -10° to +70° C -40° to +70° C

Color Coding - Fibre

Blue Orange Green Brown Grey White Red Black Yellow Violet Pink Aqua

* For Fibre count more than 12F, bundles in multiple of 9/12F will be formed with color identification binder (Blue, Orange, Green & Brown)

Special Features

  • Tight buffer & jacket are available in variety of colours.
  • Easy access to the fibres
  • Quick Cable Entry——

Mechanical Characteristics

Torsion Resistance (IEC 60794-1-2-E7) 2 Cycle (± 360°) 1 Kg Weight, L= 2 Mtr
Crush Resistance (IEC 60794-1-2-E3) 1000 N (100 X 100 mm) for 600 sec

Drum Length

  • 1000 meters ± 10%
