BIRLA CABLE LTD.

FTTH CABLES

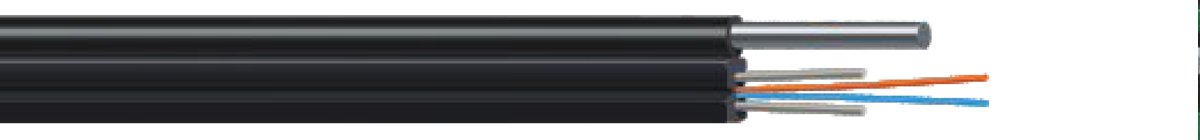

DROP CABLE (1/2 F)

Application

  • Drop Cable suitable for aerial application.
Ipsum

Typical Cross section of 2 Fibre

Cable Construction Details

  • —Up to 2 enhance low water peak single mode fibres in full compliance with ITU-T-G.652.D (also available with G657 SM Fibre and OM1 / OM2 / OM3 & OM4 MM Fibre)
  • —FRP / ARP rod as strength member
  • —Steel wire as integrated messenger wire
  • —LSZH shealth

Technical Characteristics

FIBRE COUNT DIAMETER (mm) Nominal WEIGHT (Kg./Km) Nominal TENSILE STRENGTH (N) BENDING RADIUS (mm) TEMPERATURE RANGE
(IEC 60794-1-2-F1)
Installation Operating Temporary Permanent Installation Operating
2F 2.0 X 5.0 20 130 50 30 50 -20° to +70° C -40° to +70° C

Color Coding - Fibre

Blue Orange

Special Features

  • Easy access to the fibres—
  • —Quick Cable Entry & Easy-Peel
  • ——Easy Seal in Closures
  • Low insertion and back reflection loss—
  • —Good durability
  • —High Return Loss—
  • ——High temperature stability
  • —Clean, Gel-Free, Dry Design

Mechanical Characteristics

Torsion Resistance (IEC 60794-1-2-E11) 50 N (± 180°) 10 Cycles
Impact Resistance (IEC 60794-1-E4) Height 1 mtr.,Weight = 0.3 Kg, 3 Nos at different location

Drum Length

  • 500 meters ± 5%
