BIRLA CABLE LTD.

FTTH CABLES

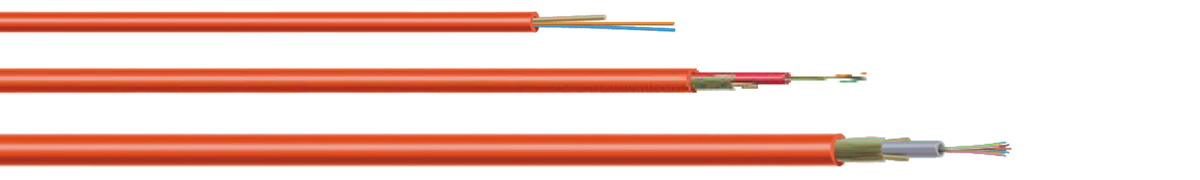

CENTRAL-TUBE AIRBLOWN MICRO CABLE (2-12F)

Application

  • —Inside building, suitable for Indoor use
Ipsum

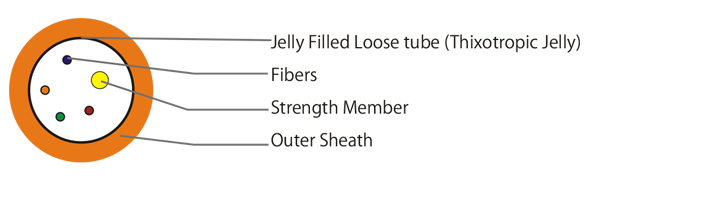

Typical Cross Section Of 4 F Air Blown Cable

Cable Construction Details

  • Up to 4 enhance low water peak single mode fibres in full compliance with ITU-T-G.652.D (also available with G655 / G656 / G657 SM Fibre)—
  • —Loose buffer tube fully filled
  • —ARP/KRP/FRP rod as a strength member inside the loose tube
  • —nsect & Termite resistance PA-12 outer sheath, Orange

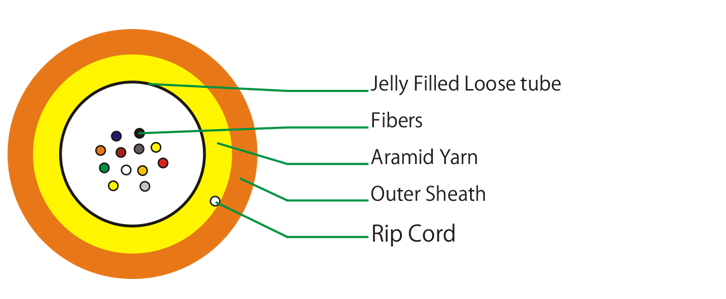

Typical Cross Section Of 12f Unitube Micro Cable

Cable Construction Details (Available in 2.5mm & 3.8mm Dia)s

  • Up to 12 enhance low water peak single mode fibres in full compliance with ITU-T-G.652.D (also available with G655 / G656 / G657 SM Fibre)
  • Loose buffer tubes fully filled
  • Aramid yarns as flexible peripheral strength member
  • Rip cords for ripping outer jacket
  • nsect & Termite resistance PA-12 outer sheath, Orange

Technical Characteristics-Air Blown & Unitube Micro Cable

FIBRE COUNT DIAMETER (mm) Nominal WEIGHT (Kg./Km) Nominal TENSILE STRENGTH (N) BENDING RADIUS (mm) TEMPERATURE RANGE
(IEC 60794-1-2-F1)		 CRUSH
RESISTANCE (N)
Installation Operating Temporary Permanent Installation Operating (IEC 60794-1-2-E3)
2F 1.7 2.3 40 20 10D 20D -20° to +50° C -40° to +70° C 100 N/(10x10cm)
4F 1.9 2.9 40 20 10D 20D -20° to +50° C -40° to +70° C 100 N/(10x10cm)
UP TO 12F 2.5 6 150 75 10D 20D -20° to +50° C -40° to +70° C 500 N/(10x10cm)
UP TO 12F 3.8 12 200 100 10D 20D -20° to +50° C -40° to +70° C 1000 N/(10x10cm)

Color Coding - Fibre & Tube

Blue Orange Green Brown Grey White Red Black Yellow Violet Pink Aqua

Special Features

  • Completely dielectric cable / non metallic cable immune to electromagnetic interferences
  • Suitable for Micro duct Installation

Mechanical Characteristics

Repeated Bending (IEC 60794-1-2-E6) 30 Cycle, 20 X D, 1 Kg Load, D = Cable Diameter
Torsion Resistance (IEC 60794-1-2-E7) 2 Cycle (± 180°) 1 Kg Weight, L= 2 Mtr
Kink Resistance (IEC 60794-1-2-E10) 15 x D, D = Cable D

Drum Length

  • 2000/3000/4000 meters ± 5%
