These are PVC Insulated Single Core Thin-Wall type Low Voltage and Light Weight Auto Wires conforming to International DIN, JIS & JASO Standards. Range of Cables includes FLRY, AV, AVS and AVSS types.

Application

These wires are used in manufacturing of Wiring Harness for Automobile Industry where high flexibility, thermo and mechanical strength are required..

Ipsum

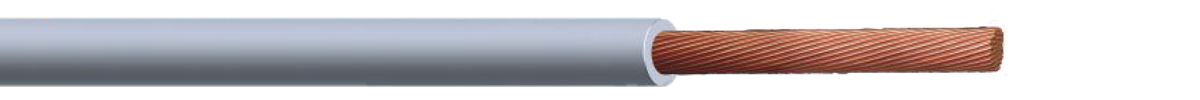

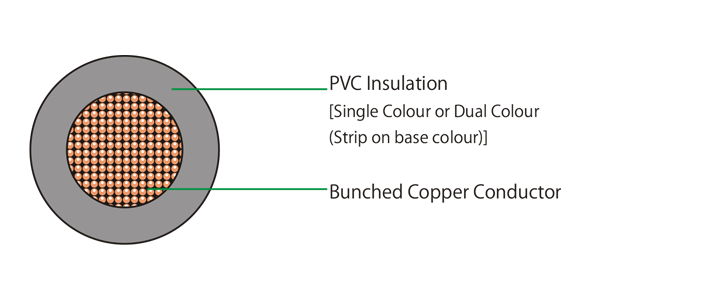

Typical Cross section

Feature:

Manufactured within the Quality System certified as per TS 16949:2002

  • Resistant to heat, oil, abrasion and cold.
  • Excellent flexibility.
  • Temperature Range of DIN Wires: –40°C to +105°C.
  • Temperature Range of JIS & JASO Wires : –40°C to +85°C.
  • Available in different colors and stripes.
  • Available in Leaded or Lead free grades.
  • Packed in Coils of suitable standard lengths.

Technical Characteristics

FLRY-B Type Wires (DIN 72551 Part 5 & 6)

Nominal Cross Section Sq mm No. of Strands Diameter of Single Wire Max mm Diameter of Cond-uctor Max mm Electrical Resistance @ 20°C mΩ/m Insulation Wall Thickness Min. mm Cable Outer Diameter mm Cable Weight Approx. Kg/Km
0.35 12 0.21 0.90 47.8 - 52.0 0.20 1.2 – 1.4 4.5
0.50 0.50 0.21 1.00 34.1 - 37.1 0.22 1.4 – 1.6 6.6
0.75 24 0.21 1.20 22.7 - 24.7 0.24 1.7 – 1.9 9.0
1.0 32 0.21 1.35 17.0 - 18.5 0.24 1.9 – 2.1 11.0
1.5 30 0.26 1.70 11.7 - 12.7 0.24 2.2 – 2.4 16.0
2.5 50 0.26 2.20 7.0 - 7.6 0.28 2.7 – 3.0 26.0
4.0 56 0.31 2.75 4.32 - 4.70 0.32 3.4 – 3.7 42.0
6.0 84 0.31 3.30 2.85 - 3.10 0.32 4.0 – 4.3 61.0
10.0 80 0.41 4.40 1.82 (Max) 0.48 5.5 – 6.0 109.0
16.0 126 0.41 5.50 1.16 (Max) 0.48 7.0 – 7.5 178.0

AVS Type Wires (JASO D 611)

Nominal Cross Section Sq mm No. of Strands Diameter of Single Wire Max mm Diameter of Cond-uctor Max mm Electrical Resistance @ 20°C mΩ/m Insulation Wall Thickness Min. mm Cable Outer Diameter mm Cable Weight Approx. Kg/Km
0.5 7 0.32 1.0 32.7 0.32 2.1 8.1
1.25 16 0.32 1.5 14.3 0.32 2.6 15.2
1.25f 50 0.18 1.5 14.7 0.32 2.6 14.9
2.00 26 0.32 1.9 8.81 0.32 3.1 23.3
3.00 41 0.32 2.4 5.59 0.40 3.8 37.6
5.00 65 0.32 3.0 3.52 0.48 4.6 58.6

AV Type Wires (JIS C 3406)

Nominal Cross Section Sq mm No. of Strands Diameter of Single Wire Max mm Diameter of Cond-uctor Max mm Electrical Resistance @ 20°C mΩ/m Insulation Wall Thickness Min. mm Cable Outer Diameter mm Cable Weight Approx. Kg/Km
0.5f 20 0.18 1.0 36.7 0.48 2.4 8.7
0.75f 30 0.18 1.20 24.4 0.48 2.6 11.0
0.85 11 0.32 1.20 20.8 0.48 2.6 12.0
2.00 26 0.32 1.90 8.81 0.48 3.4 24.9
3.00 41 0.32 2.40 5.59 0.56 4.1 39.6
5.00 65 0.32 3.00 3.52 0.64 4.9 60.0
8.00 50 0.45 3.70 2.32 0.72 5.8 89.5
10.0 65 0.45 4.25 1.80 0.80 6.5 115.7

AVSS Type Wires ( JASO D 611)

Nominal Cross Section Sq mm No. of Strands Diameter of Single Wire Max mm Diameter of Cond-uctor Max mm Electrical Resistance @ 20°C mΩ/m Insulation Wall Thickness Min. mm Cable Outer Diameter mm Cable Weight Approx. Kg/Km
0.35 7 0.26 0.8 50.2 0.24 1.5 4.8
0.50 7 0.32 1.0 32.7 0.24 1.7 6.9
0.5f 19 0.19 1.0 34.6 0.24 1.7 6.7
0.75 7 0.39 1.8 22.3 0.24 1.8 9.4
0.75f 19 0.23 1.2 23.6 0.24 1.9 9.2
0.85 7 0.40 1.1 20.8 0.24 1.9 10.0
1.25 19 0.29 1.5 14.9 0.24 2.2 13.9
2.00 19 0.37 1.9 9.0 0.32 2.8 23.0
2.00 f 37 0.26 1.8 9.5 0.32 2.7 21.6
