SPECIALITY CABLES

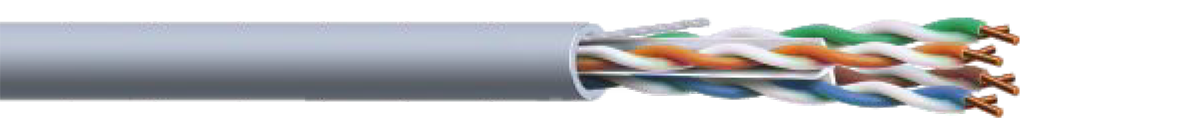

4 PAIR UTP CAT 6 CABLE
4 Pair Unshielded Twisted Pair (UTP) Data Cable,
23 AWG (0.56mm) Solid Bare Copper Conductors,
Polyethylene Insulation, Separator, PVC Jacket, Rip cord
Application
These are structured cables for campus, riser and horizontal installations. Suitable for Ethernet Applications and compatible with all known connection systems. Ideal for high performance workstation applications including voice/ data systems, digital video, broadband and voice over internet protocol, etc.

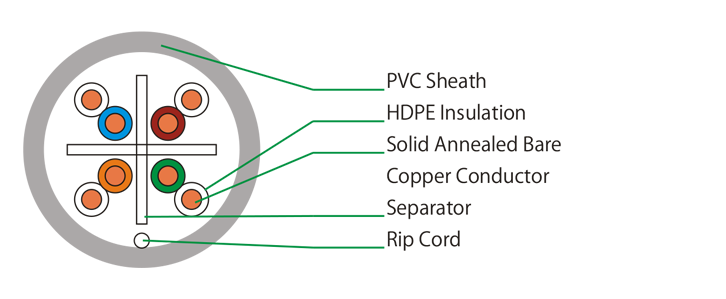

Typical Cross section
Electrical Characteristics:
| Conductor Resistance | Max. 9.38 O /100m |
| Conductor Resistance Unbalance | Max. 5 % |
| Mutual Capacitance | Max. 5.6 nF/100m |
| Capacitance Earth Unbalance | Max. 330 pF/100m |
| Propagation Delay @ 1,10,100,250MHz | Max. 570, 545, 538 & 536 ns/100 m |
| Propagation Delay Skew 1 – 250 MHz | Max. 45 ns/100 m |
Features:
Technical Details
| Freq (MHZ) | Attenuation (dB/100m) | NEXT (dB) | PSNEXT (dB) | ACRF ELFEXT (dB) | PSACRF [PSELFEXT] (dB) | Return Loss (dB) | TCL (dB) | ETCL (dB) |
| Max. | Min. | Min. | Min. | Min. | Min. | Min. | Min. | |
| 1.0 | 2.0 | 74.3 | 72.3 | 67.8 | 64.8 | 20.0 | 40.0 | 35.0 |
| 4.0 | 3.8 | 65.3 | 63.3 | 55.8 | 52.8 | 23.0 | 40.0 | 23.0 |
| 8.0 | 5.3 | 60.8 | 58.8 | 49.7 | 46.7 | 24.5 | 40.0 | 16.9 |
| 10.0 | 6.0 | 59.3 | 57.3 | 47.8 | 44.8 | 25.0 | 40.0 | 15.0 |
| 16.0 | 7.6 | 56.2 | 54.2 | 43.7 | 40.7 | 25.0 | 38.0 | 10.9 |
| 20.0 | 8.5 | 54.8 | 52.8 | 41.8 | 38.8 | 25.0 | 37.0 | 9.0 |
| 25.0 | 9.5 | 53.3 | 51.3 | 39.8 | 39.8 | 24.3 | 36.0 | 7.0 |
| 31.25 | 10.7 | 51.9 | 49.9 | 37.9 | 34.9 | 23.6 | 35.1 | 5.5@ |
| 62.5 | 15.4 | 47.4 | 45.4 | 31.9 | 28.9 | 21.5 | 32.0 | 30MHz |
| 100 | 19.8 | 44.3 | 42.3 | 27.8 | 24.8 | 20.1 | 30.0 | - |
| 200 | 29.0 | 39.8 | 37.8 | 21.8 | 18.8 | 18.0 | 27.0 | |
| 250 | 32.8 | 38.3 | 36.3 | 19.8 | 16.8 | 17.3 | 26.0 |
Note
Bi-directional Testing for Return Loss, NEXT & PSNEXT
Colour Code:
| Pair 1 | : White/Blue -Blue; |
| Pair 2 | : White/Orange -Orange; |
| Pair 3 | : White/Green -Green; |
| Pair 4 | : White/Brown -Brown |
Cable Diameter , Standard Length & Packing::
| Cable Diameter | : 6.35 mm (Max.) |
| Available Packaging | : 305 mtr Pull box Or 500 / 1000 mtr spool |
| Available Colour | : Grey or As Per Customer Requirement |
