SPECIALITY CABLES

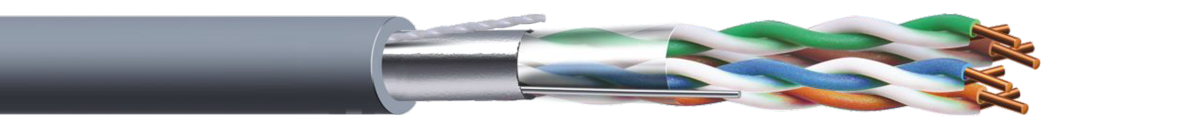

4 PAIR FTP CAT 5e CABLE
4 Pair Foil Screened Twisted Pair (FTP) Data Cable, 24 AWG (0.5mm)
Solid Bare Copper Conductors, Polyethylene Insulation, Overall 100%
Screened, PVC Sheath
Application
- Local area network
- Wide area network
- Broadband Connectivity

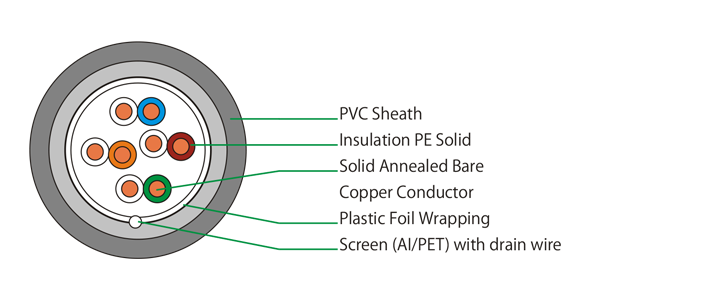

Typical Cross section
Electrical Characteristics:
| Conductor Resistance | Max. 9.38 O /100m |
| Conductor Resistance Unbalance | Max. 5 % |
| Mutual Capacitance | Max. 5.6 nF/100m |
| Capacitance Earth Unbalance | Max. 330 pF/100m |
| Propagation Delay @ 1 MHZ, 10 MHz & 100 MHz |
Max. 570, 545, 538 ns/100 m |
| Propagation Delay Skew 1 – 100 MHz | Max. 45 ns/100 m |
Colour Code:
| Pair 1 | : White/Blue -Blue; |
| Pair 2 | : White/Orange -Orange; |
| Pair 3 | : White/Green -Green; |
| Pair 4 | : White/Brown -Brown |
Standard Length & Packing:
| Cable Diameter | :6.0 ± 0.5 mm |
| Available Packaging | : 305 mtr Pull box Or 500 / 1000 mtr spool |
Technical Details
| Freq (MHZ) | Return Loss (dB) | Insertion Loss (dB/100m) | NEXT (dB) | PSNEXT (dB) | ACRF ELFEXT (dB) | PSACRF [PSELFEXT] (dB) |
| Min. | Max. | Min. | Min. | Min. | Min. | |
| 1.0 | 20.0 | 2.0 | 65.3 | 62.3 | 63.8 | 60.8 |
| 4.0 | 23.0 | 4.1 | 56.3 | 53.3 | 51.8 | 48.8 |
| 8.0 | 24.5 | 5.8 | 51.8 | 48.8 | 45.7 | 42.7 |
| 10.0 | 25.0 | 6.5 | 50.3 | 47.3 | 43.8 | 40.8 |
| 16.0 | 25.0 | 8.2 | 47.2 | 44.2 | 39.7 | 36.7 |
| 20.0 | 25.0 | 9.3 | 45.8 | 42.8 | 37.8 | 34.8 |
| 25.0 | 24.3 | 10.4 | 44.3 | 41.3 | 35.8 | 32.8 |
| 31.25 | 23.6 | 11.7 | 42.9 | 39.9 | 33.9 | 30.9 |
| 62.5 | 21.5 | 17.0 | 38.4 | 35.4 | 27.9 | 24.9 |
| 100 | 20.1 | 22.0 | 35.3 | 32.3 | 23.8 | 20.8 |
Note:
Bi-directional Testing for Return Loss, NEXT & PSNEXT
