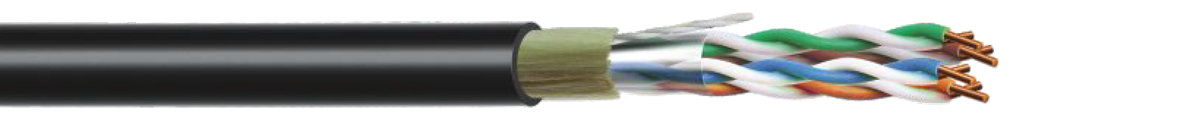

2 / 4 PAIR CAT 5 DROP CABLE (SINGLE SHEATH)
2 / 4 Pair Unshielded twisted pair (UTP) drop Cable, 24 AWG (0.5mm)
Solid bare copper conductors, Polyethylene Insulation, PE Jacket,
Rip Cord.
Application
These are drop cables used for broadband connectivity in residential buildings/houses, inter building cabling etc

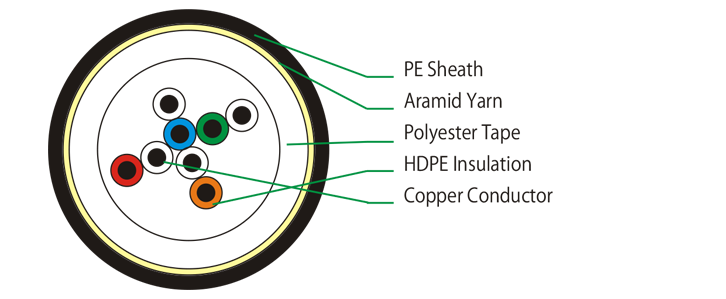

Typical Cross section
Electrical Characteristics:
| Conductor Resistance | 86 ± 6 O /Km |
| Conductor Resistance Unbalance | Max. 5 % (Individual), Max. 2% (Average) |
| Mutual Capacitance | Max. 56 nF/Km |
| Capacitance Earth Unbalance | Max. 330 pF/100m |
| Characteristics Impedance | 1-100 MHz 100 ± 15Ω |
| Propagation Delay Skew 1-100 MHz | Max. 45 ns/100m |
Features:
Colour Code:
| Pair 1 | : White - Blue; |
| Pair 2 | : White - Orange; |
| Pair 3 | : White - Green; |
| Pair 4 | : White - Brown |
Cable Diameter , Standard Length & Packing::
| Cable Diameter | :4 Pair 5.7 ± 0.5 mm 2 Pair 4.5 ± 0.5 mm |
| Available Packaging | : 305 mtr Pull box Or 500 / 1000 mtr spool |
Technical Details
| Freq (MHz) | Attenuation (dB/100m) Max. |
NEXT (dB) Min. |
Return Loss (dB) Min. |
| 1.0 | 2.0 | 62 | 20 |
| 4.0 | 4.1 | 53 | 23 |
| 8.0 | 5.8 | 48 | 23 |
| 16.0 | 8.2 | 44 | 23 |
| 20.0 | 9.3 | 42 | 23 |
| 25.0 | 10.4 | 41 | 22 |
| 100 | 22.0 | 32 | 16 |
Note:
Bi-directional Testing for Return Loss, NEXT & PSNEXT
