FIBRE TO ANTENNA, FTTA SOLUTIONS FOR RADIO BASED STATIONS

Tactical Optical Fibre Cables

Ipsum

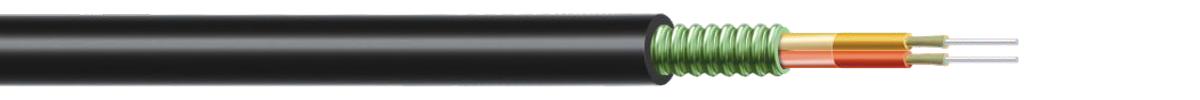

Typical Cross section of 2 Fibre

Cable Construction Details

  • —Enhance low water peak single mode fibers in full compliance with ITU-T-G.652.D (also available with G657 SM Fibre and OM1 / OM2 / OM3 & OM4 MM Fibre)—
  • —Tight coated fiber with Ny-12/LSZH—
  • ——Aramid Yarn over tight coated fiber
  • ——LSZH Sheath over Aramid yarn
  • ——Polyester tape wrapping
  • ——Corrugated Steel tape armouring
  • —Outer Sheath of UV resistant PE, Black
FIBRE COUNT DIAMETER (mm) Nominal WEIGHT (Kg./Km) Nominal TENSILE STRENGTH (N) BENDING RADIUS (mm) TEMPERATURE RANGE
(IEC 60794-1-2-F1)
Installation Operating Temporary Permanent Installation Operating
2F 8.5 70 350 300 15D 20D -20° to +50° C -40° to +70° C

Color Coding - Fibre & Tube

Blue Orange Green Brown Grey White Red Black Yellow Violet Pink Aqua

Special Features

  • —Fibre-fed remote radios (RRs) offer significant power savings—
  • ——Reduces wind and weight load on towers; avoid costly tower upgrades.
  • —Reduces installation cost through fewer cables sheaths (70% less) compared to coax.—
  • ——Reduces installation time through fewer cable sheaths.
  • ——Fast and easy connection and upgrade via tower-top terminal.
  • ——Pre-provision for future equipment additions (spare ports).
  • ——Ruggedized cable with corrugated steel tape armoured providing termite resistance, protection against rodents, birds, squirrels & monkey bite.

Mechanical Characteristics

Repeated Bending (IEC 60794-1-2-E6 30 Cycle, 20 X D, 5 Kg Load, D = Cable D
Torsion Resistance (IEC 60794-1-2-E7) 10 Cycle (± 180°) 5 Kg Weight, L= 2 Mtr
Crush Resistance (IEC 60794-1-2-E3) 2000 N (100 X 100 mm) for 600 sec
Impact Resistance (IEC 60794-1-2-E4) Height 500 mm, Weight = 5 Kg, 3 Nos at different points
Kink Resistance (IEC 60794-1-2-E10) 20 x D, D = Cable D

Drum Length

  • 1000/2000 meters ± 5%
