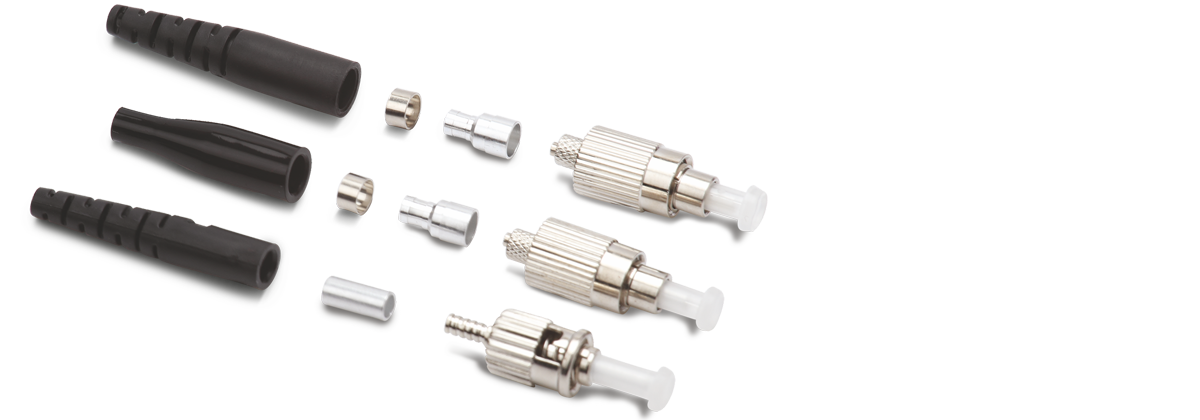

Fibre Connector Series – FC and ST

Ipsum

Features

  • Telcordia GR-326 compliant
  • Both metal and polymer body
  • Singlemode and multimode version

Product Description

Birla connectors offers superior performance with very high repeatability. These products are fully intermatable with standard NTT products and deliver longterm stability under wide range of applications. Our product utilizes preradiuserd Zerconia ferrules to ensure low loss.

Applications

  • Local area Networks
  • Fast Ethernet
  • ATM Networks
  • Optical transport
  • Optical access network

Technical Features

Parameters Phosphor /Bronze Zirconica
Insertion loss < 0.3 dB < 0.2dB
Connection Durability 500 Matings 500 Matings
Connector Repeatability ΔIL < 0.1dB ΔIL < 0.1dB
Operating Environment -40°C to +85°C -40°C to +85°C
